280kW rotary corn headers like the XWD-435 redefine large-scale silage harvesting with unmatched power compatibility and precision cutting, making them the ideal row rotary crop header for modern forage harvesters. These 280kW rotary corn headers feature tungsten carbide-treated blades for extended service life and deliver high-speed operation up to 12 km/h, maximizing throughput and minimizing downtime. With an adjustable cutting height as low as 80 mm and 100 mm ground clearance, each header navigates uneven terrain while ensuring clean stubble. The foldable 3.0 m transport width simplifies field-to-field relocation, enhancing logistical efficiency. Supported by CE and ISO 9001 certifications and global after-sales networks, these 280kW rotary corn headers embody the "quality first" principles of expertise and trustworthiness for agricultural professionals.

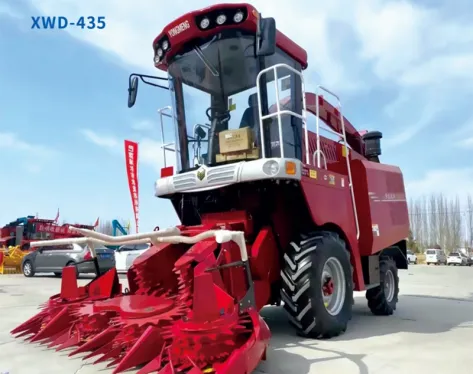

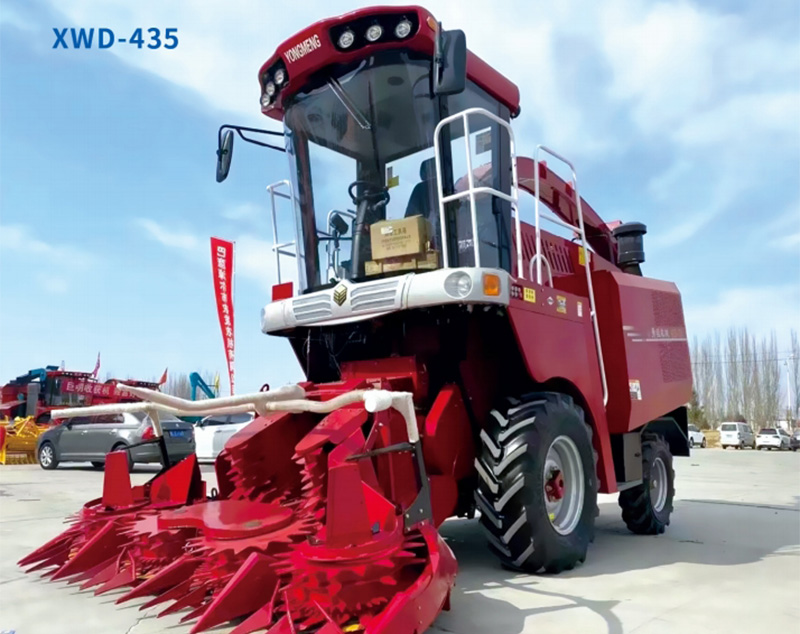

Row rotary crop header – Model XWD-435 Overview
The XWD-435 rotary corn header are designed for self-propelled forage harvester(SPFH) with power more than 280KW. It filled the harvesting width gap between 3.0m to 4.5m, and it is the most popular harvesting corn headers for the Chinese domestic self-propelled forage harvesters. it is also a perfect corn header for the John Deere 5000, 6000 series and New Holland FX series.
Key Features of the XWD-435
Superior Power Compatibility: Specifically optimized for SPFH machines with 280kW+ engines to guarantee seamless integration and peak harvesting performance.
Extended Blade Life: Toothed blades treated with tungsten carbide surface technology boost wear resistance by 3–5× compared to standard steels.
Precision Harvesting: Achieve a minimum cutting height of 80 mm and maintain 100 mm ground clearance for consistent stubble control in diverse terrains.
Compact Transport Design: Foldable header frame shrinks to 3.0 m width for easy transport between fields and roadways.
High-Speed Operation: Capable of harvesting at 5–12 km/h, these headers balance speed with gentle crop handling to reduce grain loss.
Lightweight Durability: A 1 400 kg structural weight strikes the right balance between sturdiness and maneuverability under load.
Applications
Combine Harvester Compatibility: Engineered for John Deere 5000/6000 series combines and New Holland FX series forage harvesters.
All-Crop Header for Sale: Ideal for operators seeking an all crop header for sale solution that handles corn silage, popcorn, and specialty maize varieties.
Large-Scale Operations: Built to withstand the rigors of commercial farms, these headers excel in continuous high-volume harvesting.
Quality Assurance & Support
All XWD-435 280kW rotary corn headers are manufactured under ISO 9001 and CE certifications, with each unit undergoing rigorous R&D prototyping and batch testing. Our 1-year warranty on wear parts and 3-year structural coverage are backed by 24/7 global assistance via Xinwanda's authorized dealer network.
Why Choose Xinwanda?
As a trusted rotary corn headers manufacturer, Xinwanda combines over a decade of expertise with innovation-driven R&D, offering tailored customization and comprehensive after-sales support. Partner with us for high-performance, reliable 280kW rotary corn headers that drive efficiency and long-term value in your silage operations.
| Speed of Operation(km/h) | 5~12 | Sizes in working condition(m)： | 3.53*2.26*1.15 |
| Min cutting Height(mm)： | 80 | Min.ground clearance(mm)： | 100 |
| Structrual Weight(kg)： | 1400 | Transport width(m)： | 3.0 |
| Harvesting Width(m) | 3.5 | Matching Power range(kw)： | ＞280 |
| Structural Style | Mounted | Size for transportation(m) | 2.5*1.9*1.5 |
Packing and Transpotation
The corn header is packing on a treated wood pallets, 2sets/20GP Container.
All accessories and parts on the XWD-435 are available, deliver as per demands.
Quality Guarantee:
1 (one) year upon receipt of the the corn headers
Aftersales services
Contact us directly or our dealers in your country.
